Folds in Algeria

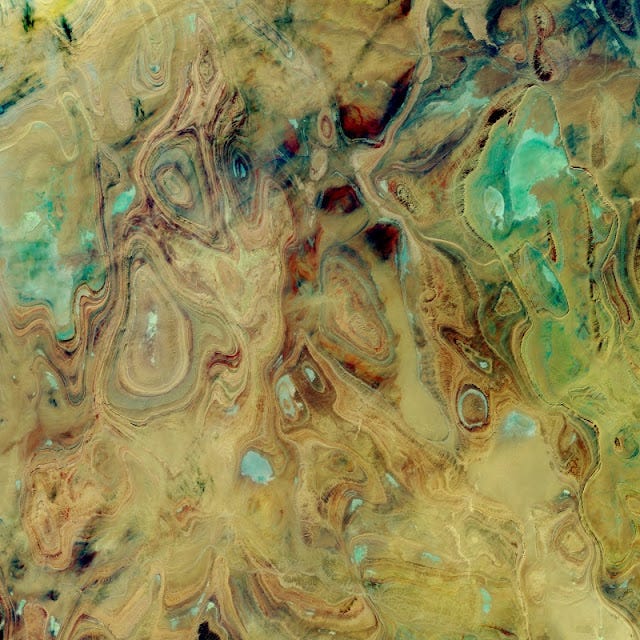

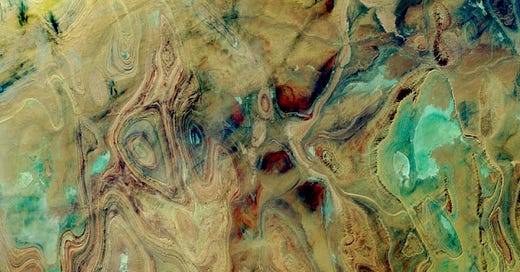

You may have seen some of the spectacular images of the earth in southern Algeria, curves and colors like some Picasso in the opposite of his cubist period. If you haven’t, check out the one from NASA, above.
The ovals and swirls, with their concentric bands, are immediately obvious to a geologist as patterns of folds, but not just linear folds like many anticlines and synclines form. These closed ovals represent domes and basins – imagine a large-scale warping, both up and down, in a thick succession of diverse sedimentary rocks, like sets of nested bowls, some of them right-side up and some inverted, then all sliced off halfway through.
But “obvious to a geologist” has plenty of limitations in a space image. Without knowing more information, it’s difficult to be sure if an oval is a basin or a dome. And you can speculate, but without some ground truth, it’s challenging to be sure what the rock types are.
This area, called the Ahnet-Mouydir, on the flank of the Hoggar Mountains close to the middle of the Sahara Desert, is remote, inhospitable, and arid, and called the “land of terror” for a reason. The rocks represent a thick sequence of marine sandstones, shales, and limestones, spanning a huge range of ages, from at least the Ordovician to the early Carboniferous – 150 million years or more, a great chunk of the Paleozoic era.

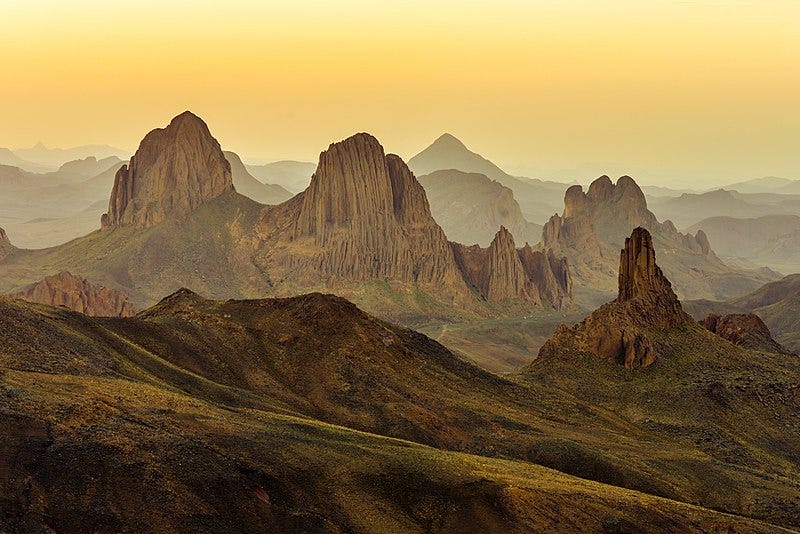

The core of the Hoggar Mountains is an old Precambrian block, not as big as the cratons and shields that form the hearts of most of the continents, but otherwise similar. It might have been something like a microcontinent that became amalgamated into the growing supercontinent of Gondwana about 600 million years ago. After that amalgamation, seas came and went much like they did in western North America throughout much of the Paleozoic era, laying down the sediments that became the rocks we see today in the northern Hoggar Mountains.
That’s all well and good – but here’s the next question, how did the rocks get deformed into these oval domes and basins? If you imagine the kinds of collisions that are typical on earth, you think of linear or curvilinear things – island arcs, edges of continents and such – that when they collide, are likely to make linear belts of deformation. This is why so many mountain ranges are long, linear features, and the folds and faults that make them up also tend to be linear. Domes and basins happen, but that seems to be almost all we have here in these mountains.
We have to look for a deformational event that is later than the youngest rocks deformed. So if some of these rocks are as young as early Carboniferous, about 340 million years old, the mountain-building event that fills the bill is the Hercynian Orogeny, where ‘orogeny’ just means mountain-building.

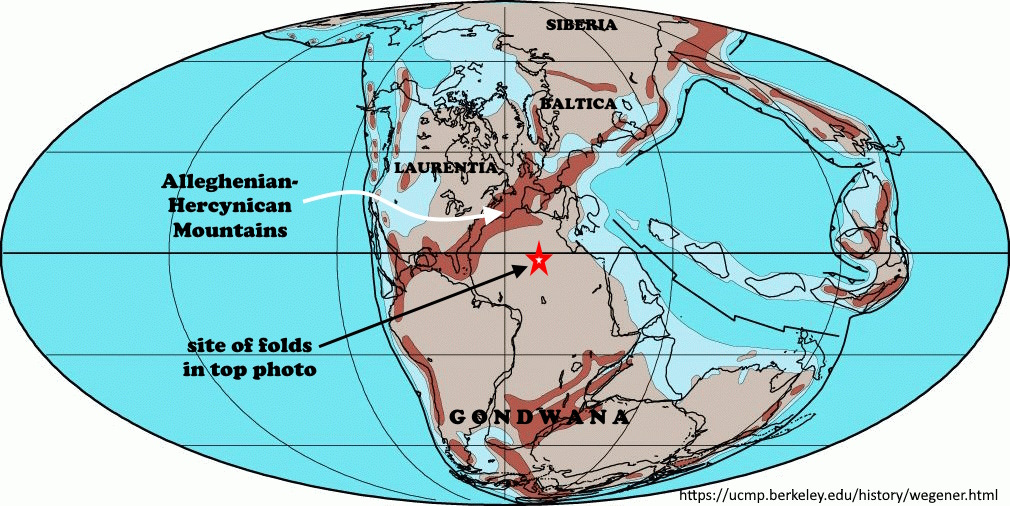

The Hercynian, at about 350 to 280 million years ago, represents the complex collision between Gondwana and the combined North America and Europe, which were already more or less attached to each other. The leading edge of Gondwana that collided was in what is now North and West Africa, and the collision produced mountain ranges all over – the Alleghenies in the central Appalachians in North America, and a complex swath of mountains across central Europe, from Spain, across France to northern Germany and into Poland, as well as elsewhere. In Africa, the most intense squeezing was at the leading edge, in what is now Morocco and Mauritania, colliding with North America, and northern Algeria, impacting Iberia.
The basins and domes of southern Algeria that we’re trying to understand are 1500 kilometers or more from that leading edge of continental collision. So I think that what must have happened is that that distant hinterland wasn’t pushed into tight, linear belts like those we find along the lines of collision, but the force was enough to warp the sediments into these relatively small domes and basins. Alternatively, it might be possible that the brittle Precambrian rocks beneath the sedimentary layers broke from the force of the collision, so that the sedimentary layers draped over the deeper brittle surface like a carpet lying over a jumble of toy building blocks – some high, some low.
The latter idea, that the brittle basement rocks were broken and pushed upward with the sedimentary layers draped over them is supported by research published in the journal Terra Nova in 2001. Hamid Haddoum and colleagues (2001, Hercynian compressional deformations of the Ahnet–Mouydir Basin, AlgerianSaharan Platform: far-field stress effects of the Late Palaeozoic orogeny: Terra Nova, 13: 220–226) studied the orientations of folds and faults in this area, trying to figure out the orientations of the stresses that caused them. Their data show a shortening direction – which means compression, or squeezing – during early Permian time oriented about northeast-southwest. That is consistent with the collision that was happening at that same time between what is now Senegal and Mauritania, in westernmost Africa, and the Virginia-Carolinas region of what is now the United States. Haddoum and his colleagues show cross-sections with basement upthrusts, basically high-angle reverse faults where older rocks are squeezed so much that they are pushed up and over younger rocks. This is quite similar to the Laramide Orogeny in the western United States about 80 to 50 million years ago, but this compression was happening about 280 million years ago as the supercontinent of Pangaea was assembled during the early Permian Period. Both represent deformation at relatively great distances from the lines of continental collision. In the case of the Laramide in western United States, one idea for transmitting the stress so far from the collision is that the subducting slab of oceanic crust began to go down at a relatively gentle angle, even close to horizontal, creating friction and stress further away from the subduction zone than normal. Whether that’s the case here in southern Algeria isn’t clear for this Hercynian collision.
I wouldn’t think of this area as high mountains, such as those that must have formed along the contact lines of Hercynian collision. Maybe more like warped, uplifted plateaus – but whatever they were, they were certainly subject to erosion. Erosion probably wore the domes and basins down to a common level, so that the nested bowls were exposed in horizontal cross-section – which for geologists is the equivalent of a geologic map. And that’s what the beautiful photos reveal.
The area might have been planed off even more by Permian glaciers during and after the Hercynian mountain-building events. But then, during the Mesozoic era, seas returned to the region and all this mess of eroded domes and basins was buried beneath even more sediments. Sometime relatively recently, during the Cenozoic era, the past 65 million years, everything was uplifted at least gently, so that the highest parts – including today’s Hoggar Mountains, were stripped of the younger Mesozoic sedimentary rocks, revealing the much older Paleozoic rocks in the domes and basins.

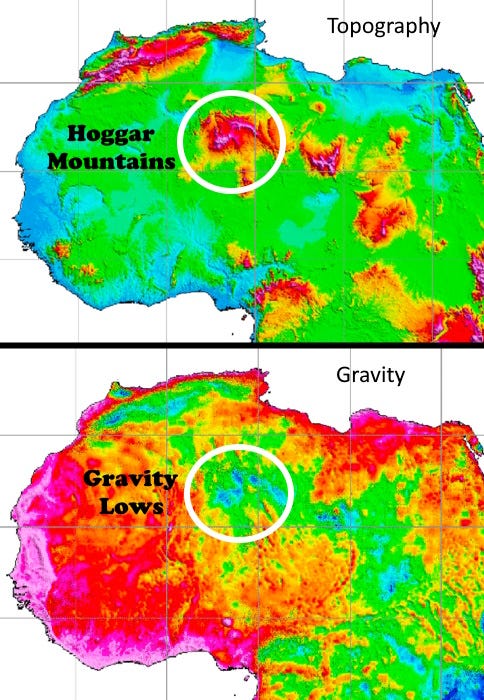

My work in Algeria was only small-scale, part of the interpretation of the gravity map of Africa, but much of the Hoggar is represented by gravity lows. You expect a broad gravity low to indicate low-density sedimentary rocks, which are potentially good targets for oil exploration. But the gravity lows there actually represent the granitic and metamorphic mountains and their deep roots, projecting down into the crust, which is much denser. Not good oil exploration targets. Gravity measurements are relative, indicating contrasts. Maps above from Mohamed & Al Deep, 2021, Depth to the bottom of the magnetic layer, crustal thickness, and heat flow in Africa: Inferences from gravity and magnetic data. Journal of African Earth Sciences: 179. 10.1016. Based on grids from EGM2008 (gravity) and Shuttle Radar Topography Mission (topography).
